Raumnetz (Room Network Graph)

Purpose

The Raumnetz is an element-level graph over a building: rooms (IfcSpace) connected to the walls (IfcWall) and slabs (IfcSlab) that bound them. Two rooms sharing a wall or slab are topologically adjacent, which gives us room-to-room connectivity as a natural by-product of the bipartite graph — the basis for later room-to-room pathfinding (evacuation routes, comfort-zone analysis, installation flow).

It sits one abstraction level above connection_graph (which is point-level, 8 bbox corners per element stitched by 5 cm proximity). Use connection_graph for low-level topology; use room_network to answer "which rooms share which bounding elements?"

Files

External dependency

The #roomgraph view loads 3d-force-graph@1.77.0 from the unpkg CDN:

<script src="https://unpkg.com/3d-force-graph@1.77.0/dist/3d-force-graph.min.js"></script>

The library is self-contained — it ships its own Three.js bundle, d3-force-3d simulator, and orbit controls. No NPM/build step required.

Data model

One bundle per architectural IFC, cached as <stem>.room_network.json:

{
  "schema_version": 2,
  "ifc_fingerprint": "<mtime>_<size>",
  "nodes": [
    {"id": "room:<gid>", "type": "room", "gid": "...", "name": "1", "long_name": "Raum 1",
     "storey": "EG", "volume_m3": 70.2, "centroid": [x, y, z]},
    {"id": "wall:<gid>", "type": "wall", "gid": "...", "element_id": 115,
     "storey": "EG", "length_m": 10.4, "height_m": 2.8,
     "is_external": true, "u_value": 3.49, "centroid": [...]},
    {"id": "slab:<gid>", "type": "slab", "gid": "...", "element_id": 89,
     "storey": "EG", "area_m2": 35.0, "predefined_type": "FLOOR",
     "is_external": false, "u_value": 0.35, "centroid": [...]}
  ],
  "edges": [
    {"source": "room:A", "target": "wall:W", "relation": "bounds",
     "area_m2": 8.4, "adjacency": "external", "adjacent_room_gid": null,
     "face_tag": "face_min"},
    {"source": "room:A", "target": "wall:W", "relation": "bounds",
     "area_m2": 12.3, "adjacency": "to_adjacent", "adjacent_room_gid": "gid-of-B",
     "face_tag": "face_max"},
    {"source": "room:A", "target": "slab:S", "relation": "ground",
     "area_m2": 35.0, "adjacency": "ground", "adjacent_room_gid": null}
  ],
  "stats": {"rooms": N, "walls": N, "slabs": N, "edges": N, "orphan_rooms": [...]},
  "extraction_warnings": [...]
}

Edge relation ∈ {bounds, floor, ceiling, roof, ground}. adjacency follows the Heizlast vocabulary: external, to_adjacent, to_unheated, to_heated, ground, roof. adjacent_room_gid is the GlobalId of the room on the opposite face of a wall / above-or-below side of a slab — set for any edge whose adjacency == "to_adjacent".

Extraction pipeline

build_room_network() is a thin transformation layer over existing machinery:

1. Envelope — calls tools/_heizlast_surfaces.py::extract_heated_envelope() for surfaces_by_room. This already does:
2. wall sub-range splitting (a 10 m wall fronting three rooms emits three distinct surfaces with distinct adjacency/adj_space_gid values),
3. slab→space XY-overlap matching + Z-alignment,
4. floor / ceiling / roof / ground classification.
5. Enrichment — calls extract_all_elements() for wall lengths, heights, slab areas, and centroids.
6. Collapse — per surface row, emit one edge with the room as source and the wall/slab as target. One wall→room edge per sub-range is emitted, so a corridor wall fronting three rooms yields three distinct edges.

IfcWallStandardCase / IfcSlabStandardCase are captured automatically — ifcopenshell's by_type() defaults to include_subtypes=True. All walls are normalised to type: "IfcWall" in the node dict so downstream code is subtype-agnostic. Regression covered by test_ifcwallstandardcase_subtypes_are_captured (fixture: BasicHouse.ifc).

Cache invalidation

Standard mtime_size fingerprint on the source IFC, plus a schema_version gate. Any change to either invalidates the cache — the endpoint re-enqueues the room_network job on the next GET.

UI

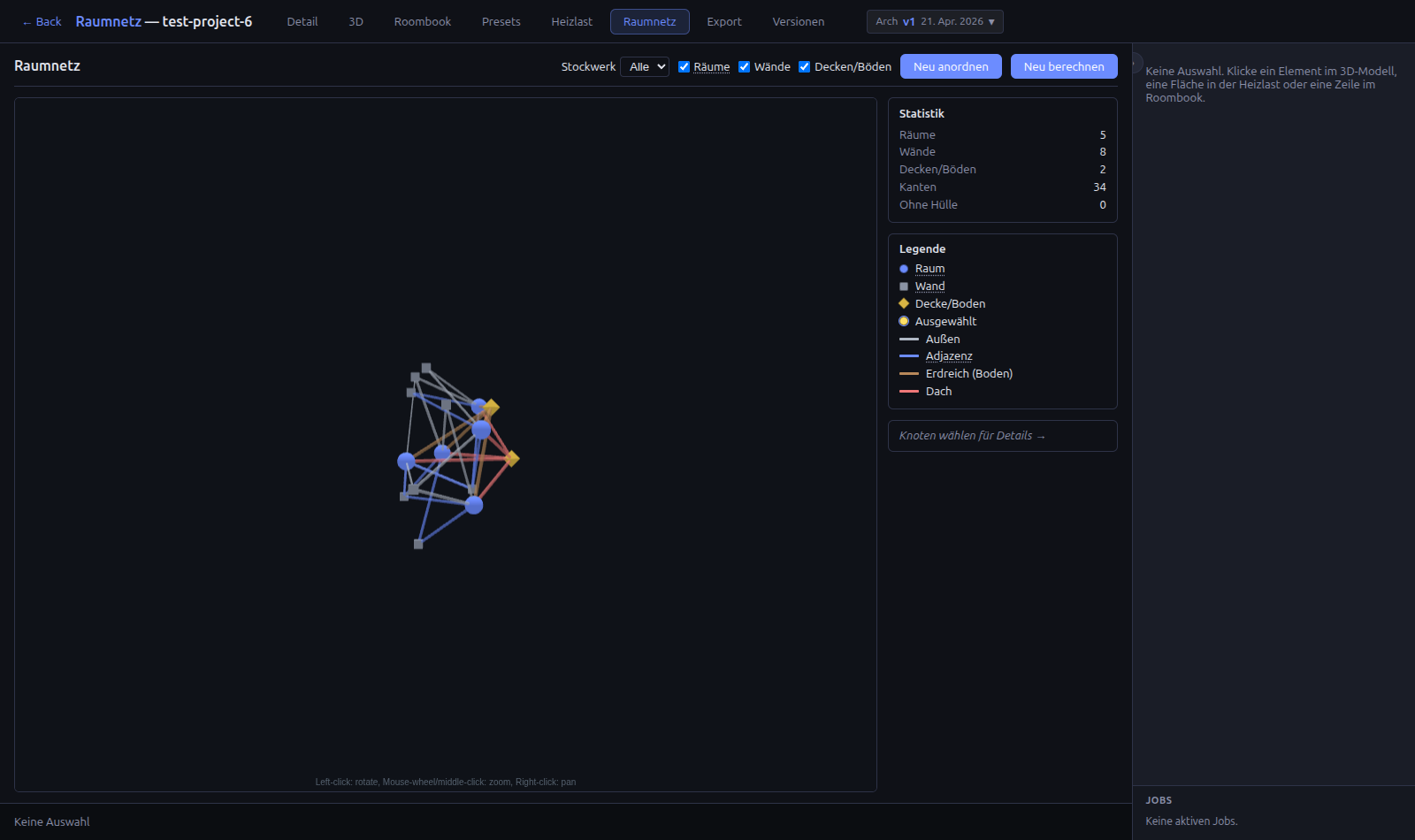

#roomgraph view (3D force-directed graph)

Rendered with 3d-force-graph — a self-settling 3D force-directed graph built on Three.js + d3-force-3d. Loaded from the unpkg CDN as a global; owns its own WebGL canvas inside #rgCanvas.

• Nodes — rooms as spheres (coloured per storey), walls as grey cubes, slabs as yellow octahedrons. The selected node turns yellow. Size scales with node type (nodeVal).
• Force simulation — library-managed velocity-Verlet with d3AlphaDecay = 0.025 + d3VelocityDecay = 0.45. Custom charge: rooms -120, walls/slabs -50. Link target distance 35. The simulation self-halts once alpha decays below the library's threshold — no more drifting, no more wasted CPU.
• Interaction (orbit controls from Three.js, hint shown at the bottom of the canvas):
• Left-click drag — rotate the camera
• Mouse wheel / middle-click drag — zoom
• Right-click drag — pan
• Click a node — selection dispatched into selectionStore → Inspector + context ribbon + 3D viewer highlight all update; the camera also flies to centre on the clicked node.
• Click the empty background — clears the selection.
• Toolbar — storey filter, type toggles (hide rooms/walls/slabs), "Neu anordnen" (calls d3ReheatSimulation()), "Neu berechnen" (forces a backend re-extract via ?force=1).

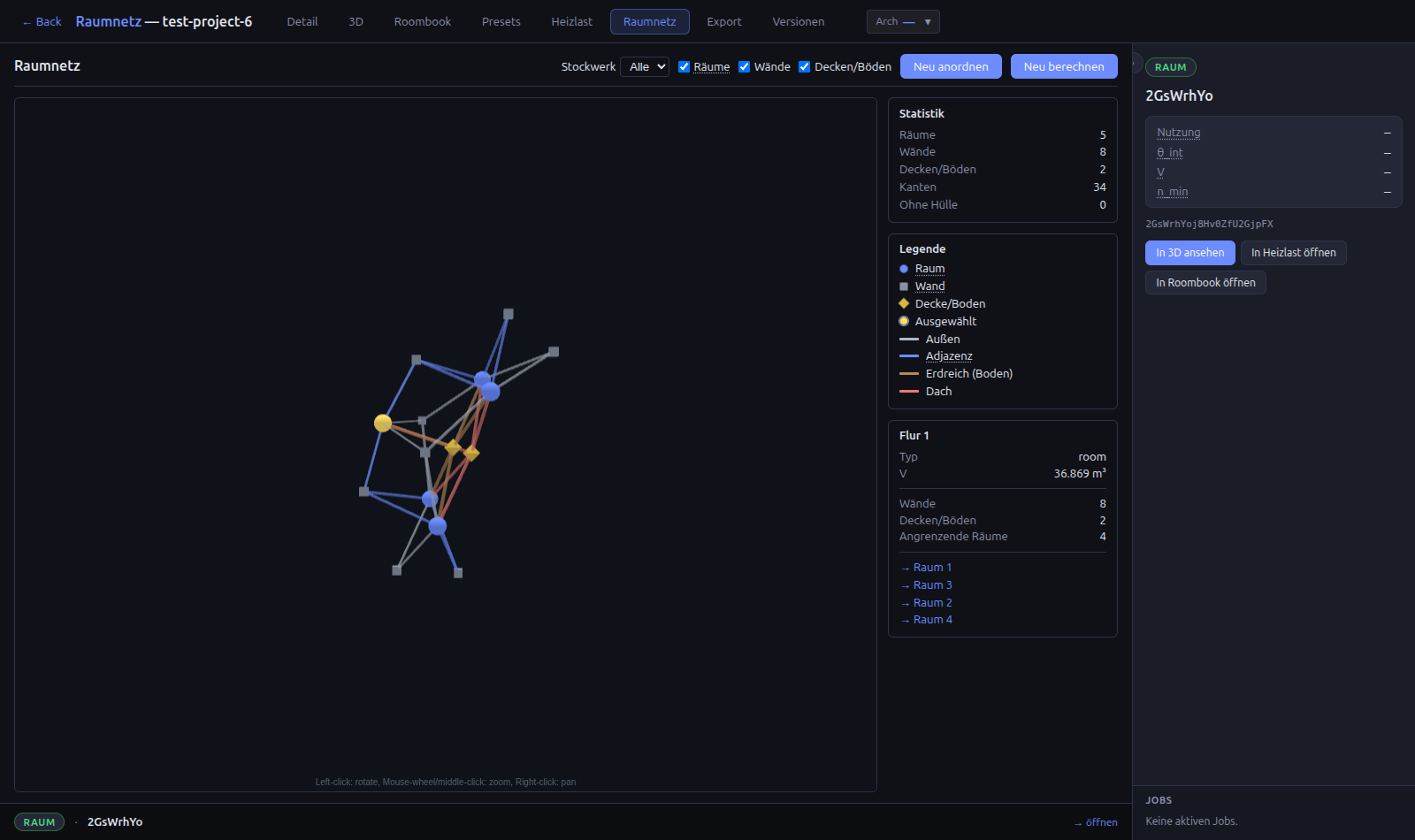

• Side rail — statistics, data-driven legend (see below), and a selection panel with the clicked node's metadata plus, for rooms, a click-through list of adjacent rooms (via adjacent_room_gid).
• Data-driven legend — every colour you see on screen is represented in the legend. The legend is built from the actual data on every render:
• One room-colour row per storey present in the model (e.g. a building with EG / 1.OG / Treppenhaus gets three sub-rows).
• One edge-colour row per edge relation/adjacency present (external, Adjazenz, Erdreich, Dach, …). Edges that don't exist in the loaded graph do not appear in the legend.
• Always-present rows: Wand, Decke/Boden, Ausgewählt.

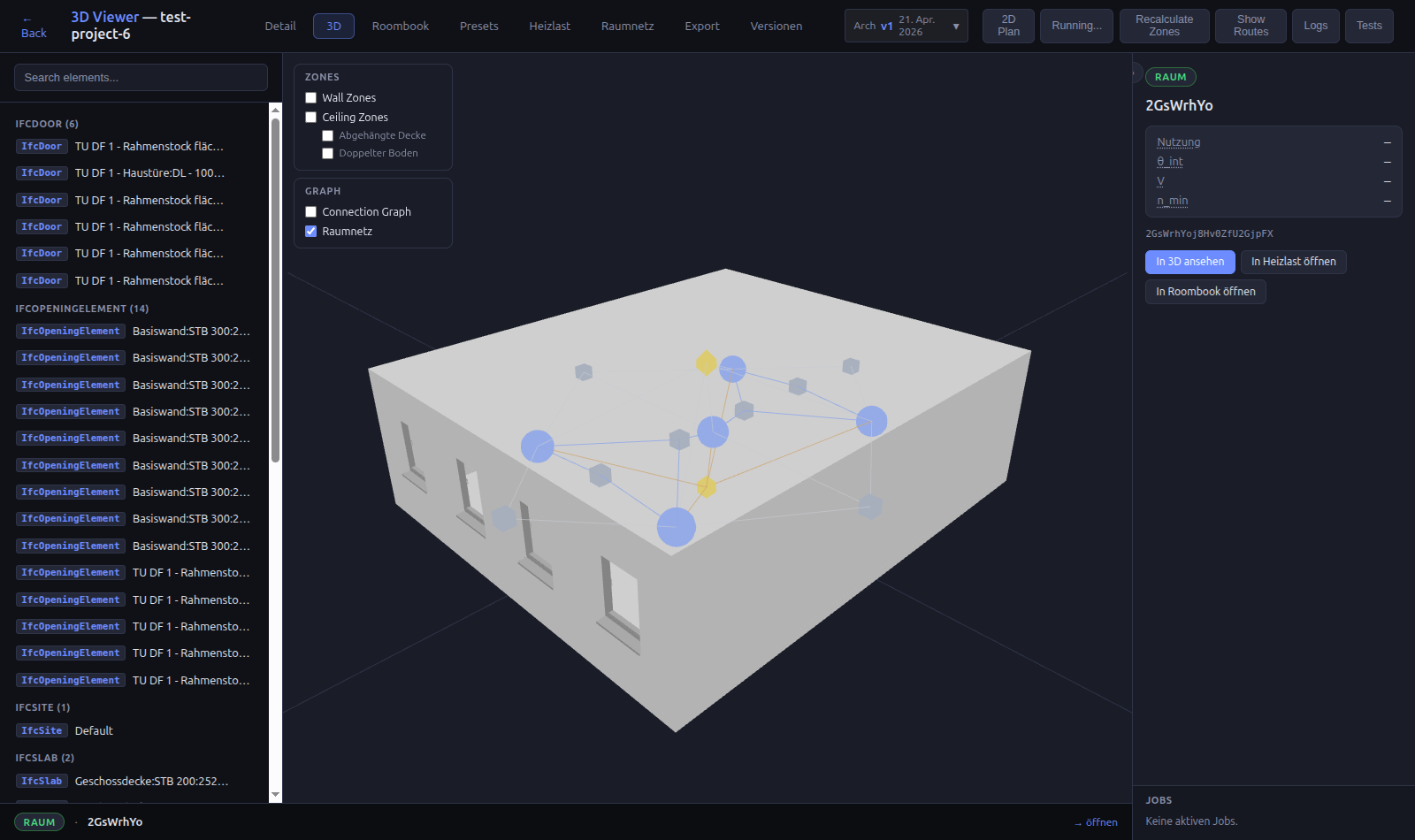

3D overlay

The existing Graph panel (top-left of the #3d view) has a new Raumnetz checkbox alongside Connection Graph. It renders the element-level graph as small depth-test-bypassed markers at each element's centroid — rooms as spheres, walls as cubes, slabs as octahedrons — with blue lines for room↔room adjacencies and orange dashed lines for slab edges.

Because depthTest: false is set on both the mesh and line materials, the markers stay visible even when they're geometrically inside a solid wall — you can see the graph structure without needing section cuts or transparency toggles.

Selection flow

All three graph surfaces — 2D SVG, 3D overlay, any other view — share the global selectionStore:

• Clicking an SVG node dispatches {type, gid, compositeID?, element_id?} → Inspector renders the matching room/wall/slab card, context ribbon updates, and any other subscribed view highlights the selection.
• Clicking a wall in the sidebar or the 3D canvas also dispatches; the room-graph's subscription finds the matching node by GlobalId (for rooms) or element_id (for walls/slabs), applies the .selected class, and auto-pans so the node is centred in the SVG viewport.

Future work

1. Doors as traversable edges — add IfcDoor as a third node type, or (simpler) annotate wall→room edges with passable: bool when the wall has a door crossing the sub-range. Enables proper room-to-room pathfinding (the current adjacent_room_gid covers topological adjacency, not passability).
2. Pathfinding — A* or BFS over the room node graph, using adjacent_room_gid as edges (or the door-annotated version). Surface as a second /room_network/<f>/path?from=&to= endpoint.
3. Abstract vs. geometric layout toggle — today the 2D view is force-directed (abstract). A top-down geometric projection per storey (using room centroids from centroid) would complement it.

Verification

# Unit + e2e (no browser, ~80 s)
uv run pytest tests/test_room_network_unit.py tests/test_room_network_e2e.py -v

# Playwright UI (needs `uv run python app.py` in another terminal)
uv run pytest tests/test_room_network_ui.py -v
