Heizlast Quality Check

Purpose

Real-world IFC models have sharp edges — models with "OKFF" vs. "OKRD" storey duplication, thin shaft walls sitting inside room AABBs, and openings tied to the wrong storey. These don't always make the extractor crash; they silently skew the heating load. The quality check runs a battery of structural tests over the heizlast envelope and surfaces anything suspicious so the user can decide whether it's a modelling quirk to accept or a bug to chase.

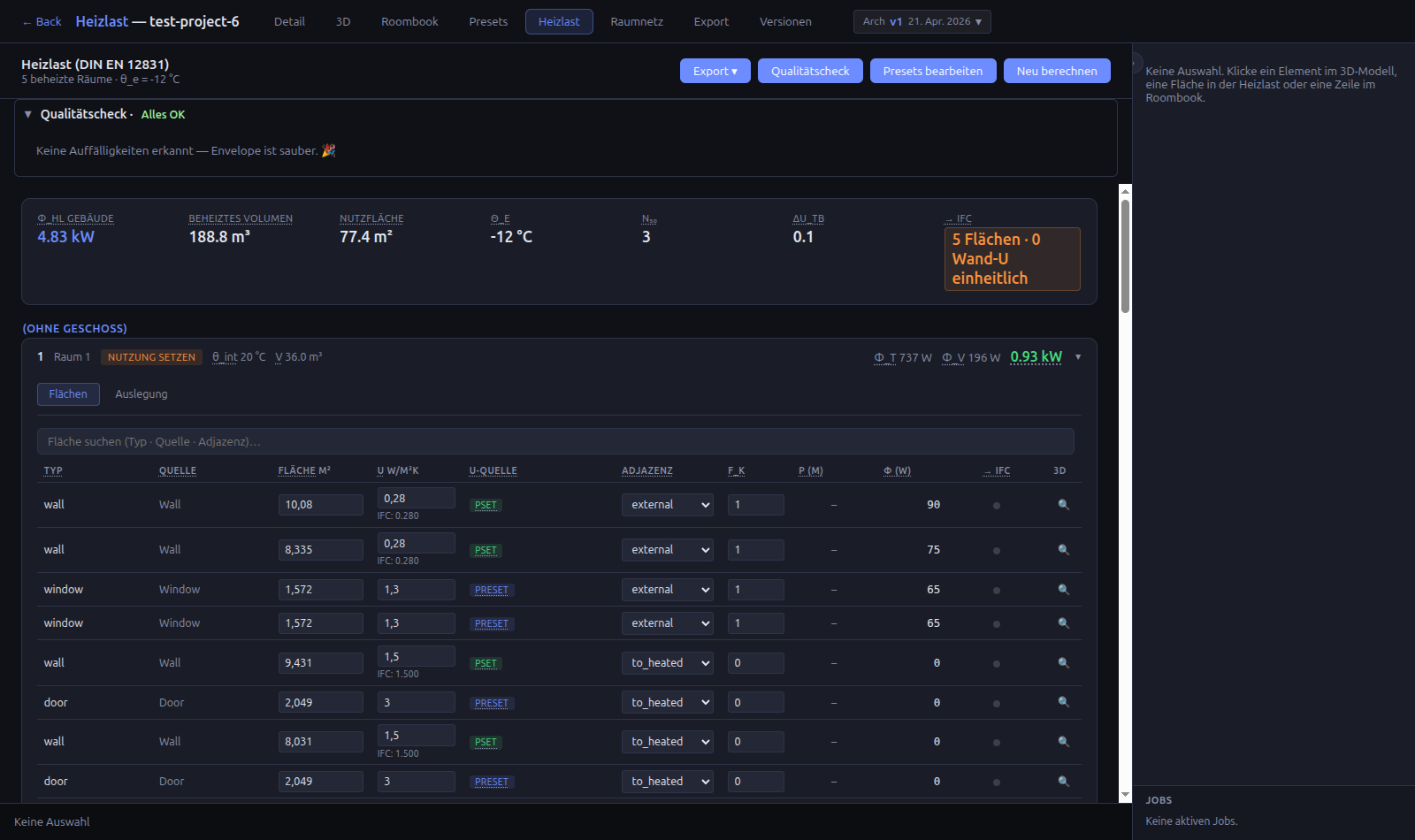

Clean-fixture Qualitätscheck panel

Where it lives

File	Purpose
`tools/_heizlast_quality.py`	Check definitions + the `run_all_checks(ifc_path)` entry point
`app.py :: /heizlast_quality/<filename>`	GET endpoint (200 if cache is fresh, 202 + heizlast job otherwise)
`templates/viewer.html` (Heizlast view)	"Qualitätscheck" button + expandable report panel
`tests/test_heizlast_quality_{unit,e2e,ui}.py`	10 unit + 5 e2e + 2 Playwright

Checks

Each issue has a check_id, level (error / warn / info), title, description, count, up to 10 samples, and a fix_hint.

Check	Level	What it catches	Fix hint
`zero_wall_rooms`	error	Heated rooms with zero wall surfaces (balconies / terraces filtered by `PredefinedType=EXTERNAL` or name patterns)	Room AABB doesn't touch any wall face — check placement and Z-offset
`self_adjacency`	error	Wall where `adj_space_gid == owner_space_gid` — a shaft/partition that slipped past the self-overlap filter in `_compute_wall_sub_ranges`	Non-axis-aligned wall geometry; refine `_face_bounding_segments`
`slab_double_count`	error	Same (slab, room, surface_type) triple emitted twice	Shrink slab Z-tolerance or guard against floor+ceiling matches on the same thin slab
`missing_wall_openings`	error	Opening declared via `FillsVoids` but absent from the envelope	Opening position falls outside wall sub-ranges — verify local-frame transform
`wall_area_divergence`	warn	ΣWallArea diverges >50% from `Qto_SpaceBaseQuantities.GrossWallArea`	Relax Z-tolerance when rooms and walls sit on different storey layers (OKFF vs. OKRD)
`opening_storey_mismatch`	info	Door/window's own storey differs from its parent wall's storey	Data quirk; UI filters should inherit parent-wall storey for openings
`zero_volume_rooms`	error	IfcSpace with no volume + no surfaces	Re-export with geometry + Qto; or exclude via `usage_type`
`orphan_adjacencies`	warn	Wall's `adj_space_gid` points to a room not in the envelope	Force recompute (`?force=1`); check space GlobalId stability

Cache version bump

The extraction-cache format got a schema_version = 2 bump on 2026-04-23 (self-adjacency fix). Existing <stem>.heizlast.json / <stem>.room_network.json files with schema_version = 1 are detected as stale on the next load and regenerate automatically. User-entered surface_overrides survive — they're keyed on stable surface_id strings and the cache-load path preserves them across the version bump.

If a model's bundle was never regenerated after the fix, the quality check may surface a non-zero self_adjacency count on first open. Hitting "Neu berechnen" once clears it.

API shape

GET /heizlast_quality/<filename>?project=<name>

200 with: json { "issues": [ { "check_id": "self_adjacency", "level": "error", "title": "...", "description": "...", "count": 0, "samples": [], "fix_hint": "..." }, … ], "meta": { "room_count": 5, "wall_surfaces": 34, "opening_surfaces": 2, "slab_surfaces": 10, "extraction_warnings": 0, "totals_by_level": {"error": 0, "warn": 0, "info": 0} } }
202 + {pending, job_id, operation: "heizlast"} when the heizlast cache is stale — the user polls the heizlast job, then re-issues the quality-check GET.
404 if the IFC doesn't exist.

Running checks from Python

from tools._heizlast_quality import run_all_checks
report = run_all_checks("uploads/my-project/versions/v1/arch.ifc",
                        use_cache=True)  # use_cache=False forces re-extract
for issue in report["issues"]:
    if issue["count"]:
        print(f"[{issue['level']}] {issue['check_id']} = {issue['count']}")

Extending

New check function signature:

def check_something(envelope: dict, model) -> QualityIssue:
    ...

Register it in run_all_checks. Return count = 0 + level = "info" for the clean-bill case (so totals_by_level stays accurate).
